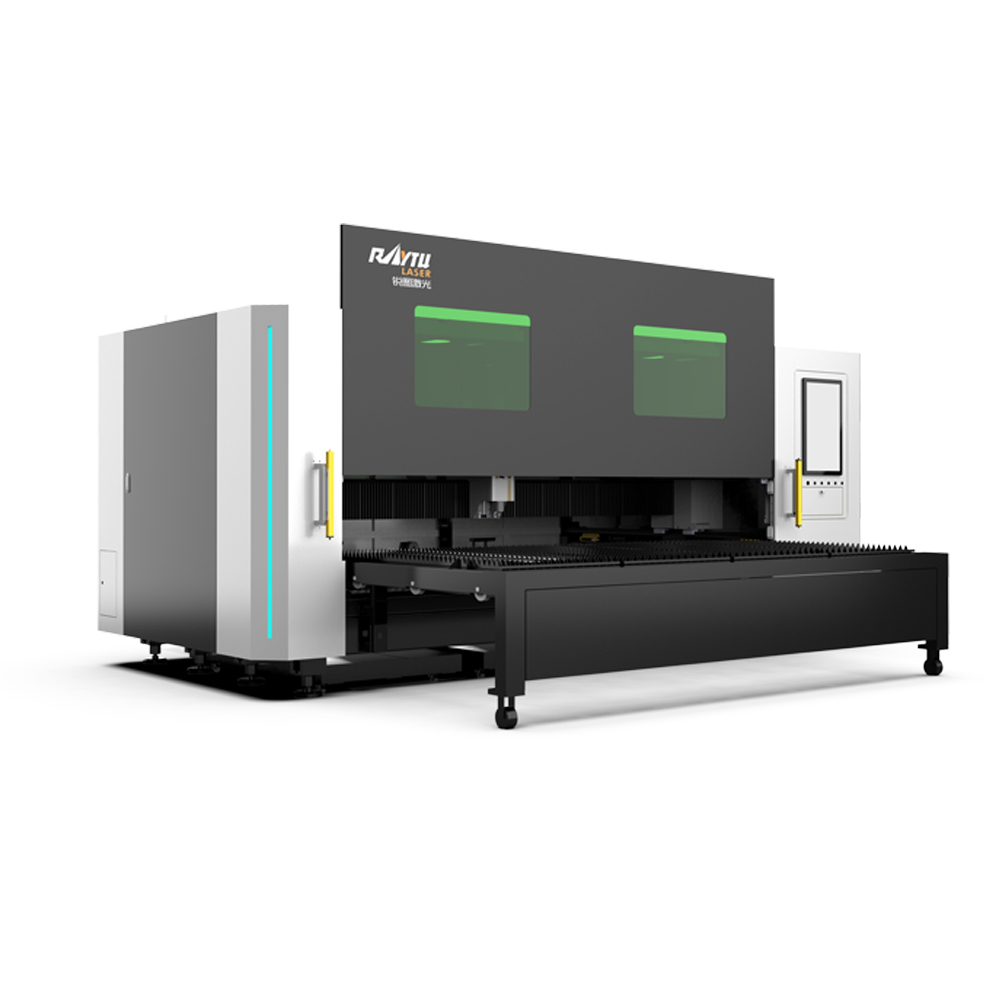

Single Table Enclosed Fiber Laser Cutting Machine
Raytu HG-Series laser cutting machine boasts an eco-friendly design with a fully protective cover for enhanced safety. With power options ranging from 1000W to 6000W, it features one-key electric interactive door opening significantly boosting efficiency and reducing downtime. Equipped with safety devices such as door protection switches and a closed sheet metal cover, the G-Series ensures both stability and visibility, delivering exceptional performance with high power and cutting speed.
- Overview
- Technical Parameters
- Cutting Sample
- Related Products

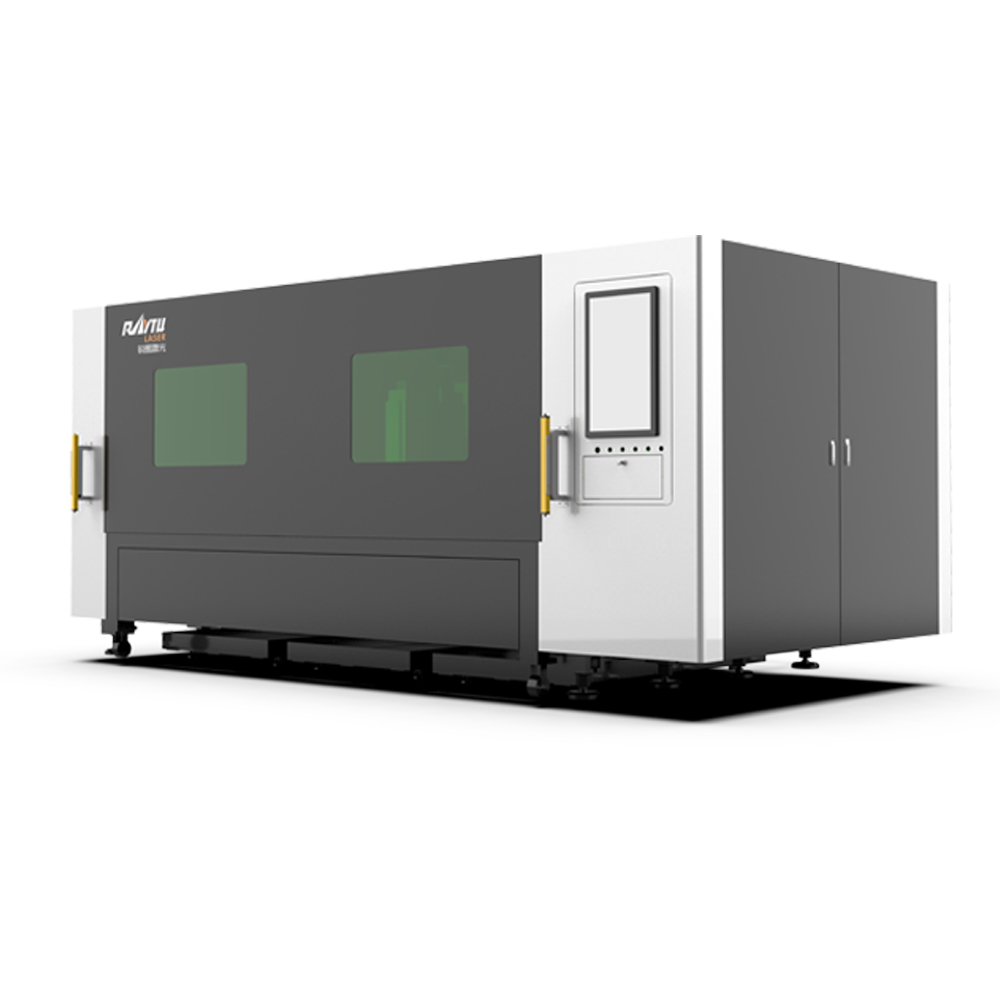

Fully Enclosed Protective Cover
The fully enclosed protective cover design can protect the operator from being harmed by the laser; the processing process can be monitored in real time; and the zoned smoke exhaust system will be more environmentally friendly.
New aviation cast aluminum beam
Our aviation aluminum beams are lightweight, resistant to corrosion and oxidation, and have high rigidity and shock resistance, making the structure stable and cutting with high precision.


Ultra-durable plate welded machine bed
The bed is welded from ultra-thick carbon steel plates and uses stress annealing technology to ensure the machine's structural stability and long-term high-performance operation.
One-key electric interactive door opening
Combined with a pull-up and pull-down material structure
High equipment space utilization
More secure and efficient production

Technical Parameters
| HG Series | RT1530HG |
| Power | 1500W-6000W |
| Positioning Accuracy | ±0.05mm |
| Repeat positioning accuracy | ±0.03mm |
| Max Acceleration | 1.2G |
| Operating Speed | 120M/MIN |
| Laser Source | IPG/Raycus/MAX |
Cutting Sample
