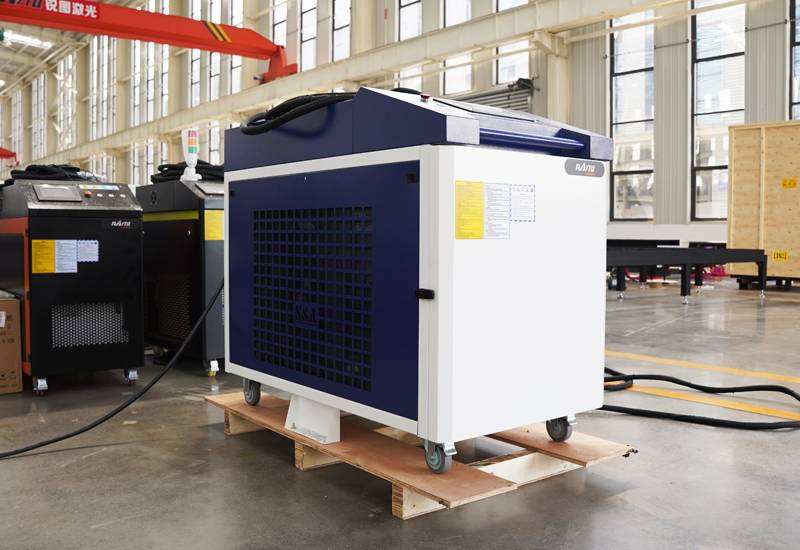

Fiber Laser
The HP Single Module CW Fiber Lasers by Raycus range from 1000W to 12kW, with high efficiency, beam quality, energy density, reliability, long service life, and maintenance-free operation. They are used in welding, cutting, cladding, surface processing, 3D printing and other fields, and integrate with robots for 3D processing.

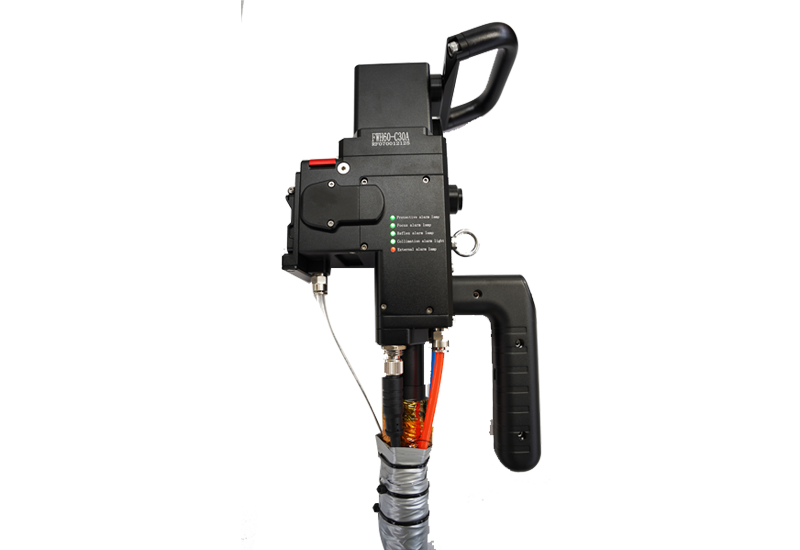

Laser cleaning head
Raycus fiber laser with high efficiency and long life, combined with an intelligent, water-cooled cleaning head for safe and precise rust, oxide, and coating removal.

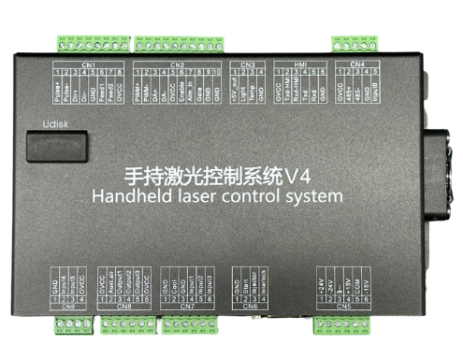

Sup Control system
1. Applicable to all brands of lasers
2. Add a variety of protection measures to the control signal part
3. Avoid potential safety hazards caused by misoperation, incorrect wiring or current interference

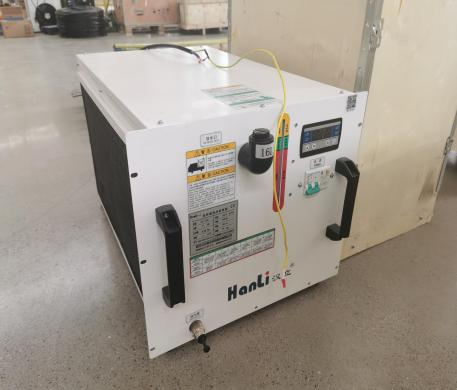

Water Chiller
Automatically adjust temperature by water circulation to cool the laser source and head. With water flow and temperature protection, the laser stops if cooling fails, protecting the machine.
Technical Parameters
| No. | Name | Brand | Origin | Remarks |
|---|---|---|---|---|
| 1 | Laser source | Raycus | China | 6kw |
| 2 | Laser heada | Relfa | China | FWH60-C30A |
| 3 | Machine Frame | Raytu | Shandong | |
| 4 | Water chiller | Hanli | China | 6000 |
| 5 | Control system | China | 10m | |
| 6 | Control system | Relfar V4 | China | LED control panel |
| Delivery time | 7-10 working days after get deposit | |||
| Warranty Time | 2 years | |||
| Technical parameters | Center wavelength | 1070±20nm | ||
| Intelligent Protection Function | Have | |||
| Focus Distance | 1500mm | |||
| Adjustable power range | 5-95% | |||
| Scan Range | 10-500mm | |||
| Scanning Speed | 40000mm/s | |||
| Auxiliary Air Pressure | >0.5-0.8Mpa | |||
| Effective Aperture | 20mm | |||
| Laser Head Weight | 2.2kg | |||
| Weight | 280KG | |||

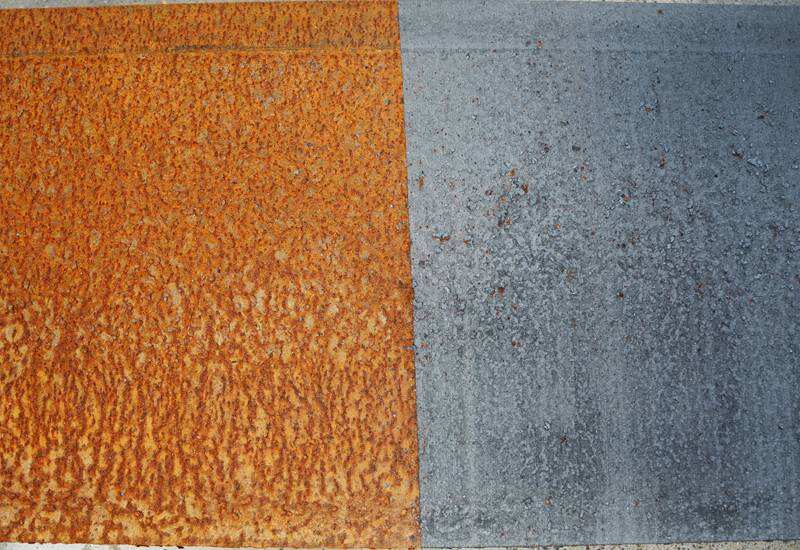

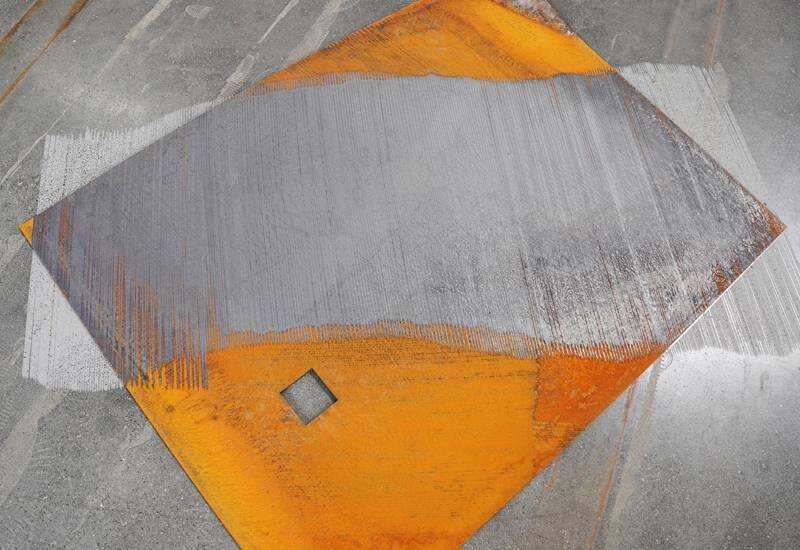

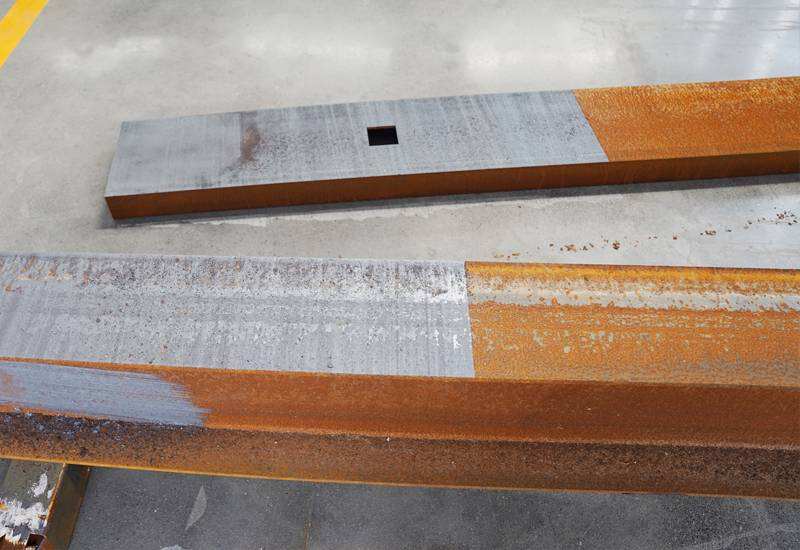

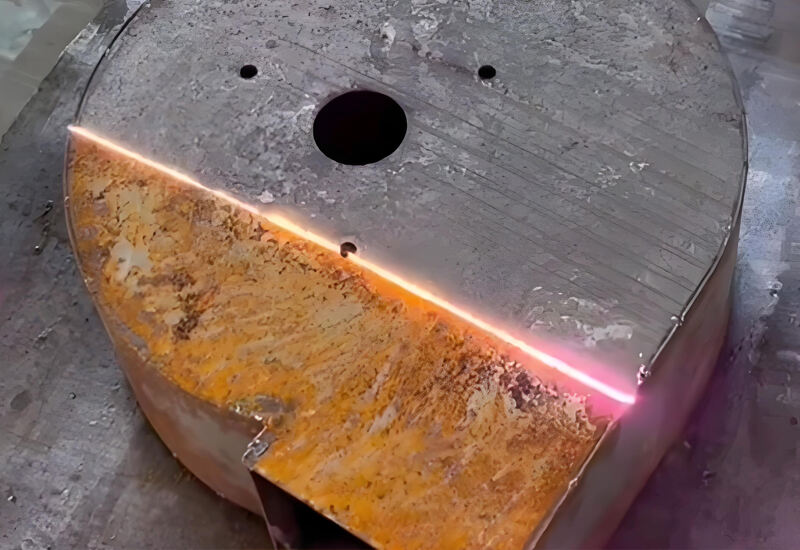

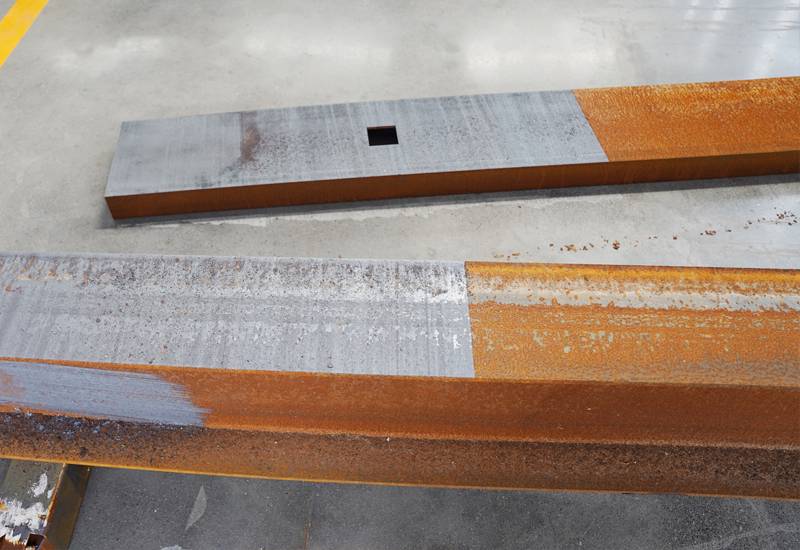

Cutting Sample
